The working weight of a compact wheel loader is usually 1-5 Ton, and different wheel loader manufacturers have different definitions of compact wheel loaders. This type of wheel loader is characterized by a small turning radius and compact structure. The compact wheel loader is used for small construction sites, gardens, farms, or small work areas. At the same time, it can be matched with various attachments, such as buckets, forks, pallets, etc., to meet different work needs
The working weight is different from the machine weight. The working weight refers to the load weight during handling or loading and unloading. If you want to buy compact wheel loader, you need to pay attention to the working weight you need.

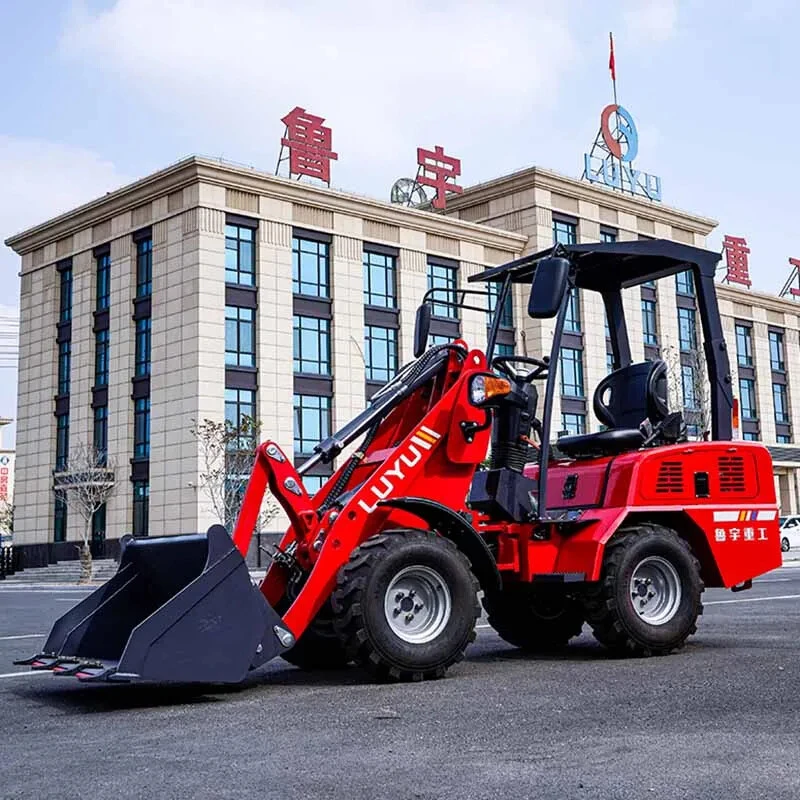

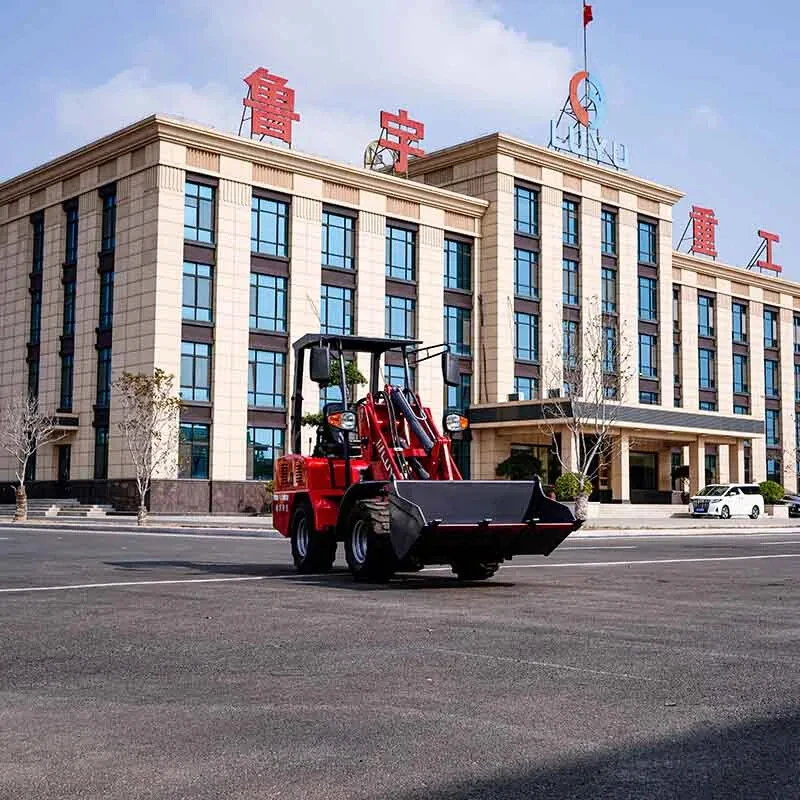

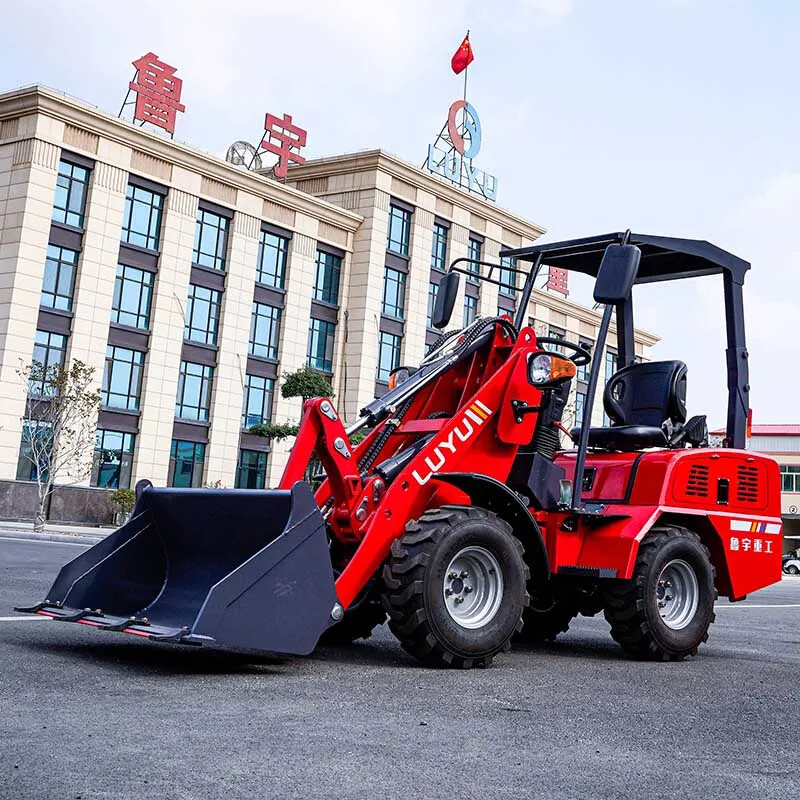

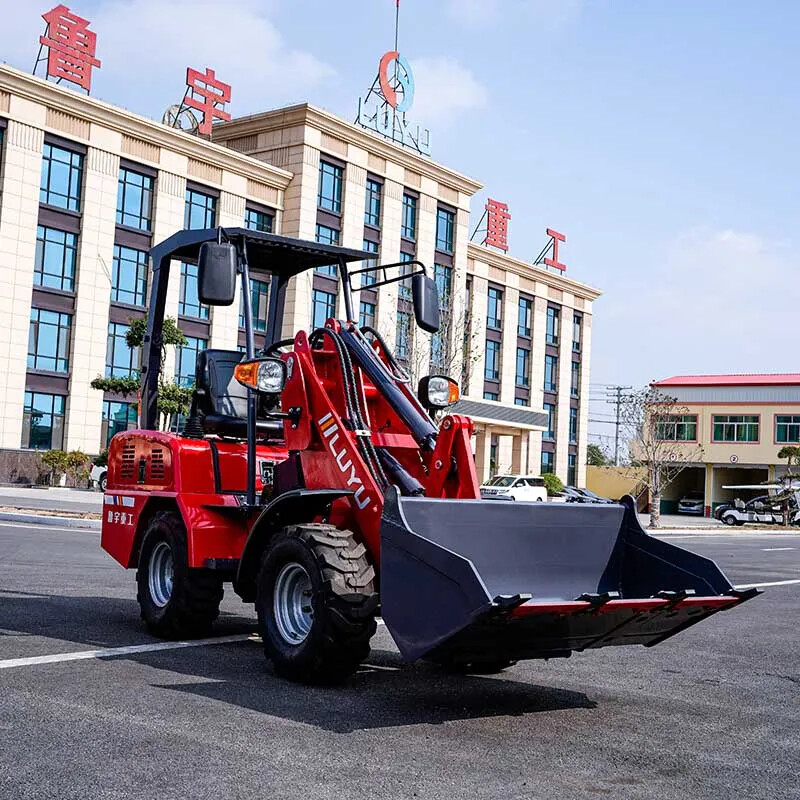

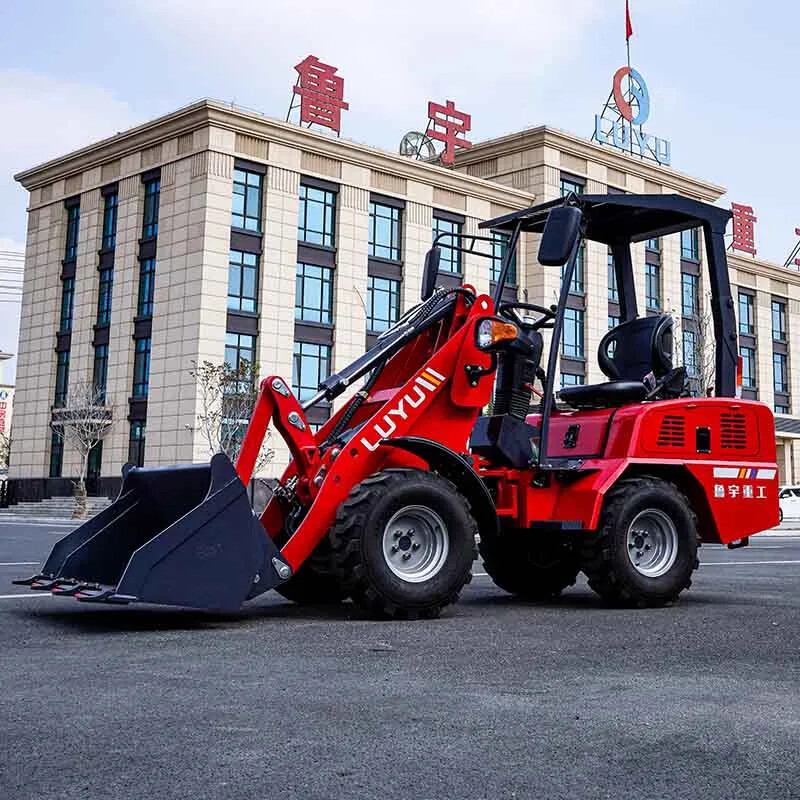

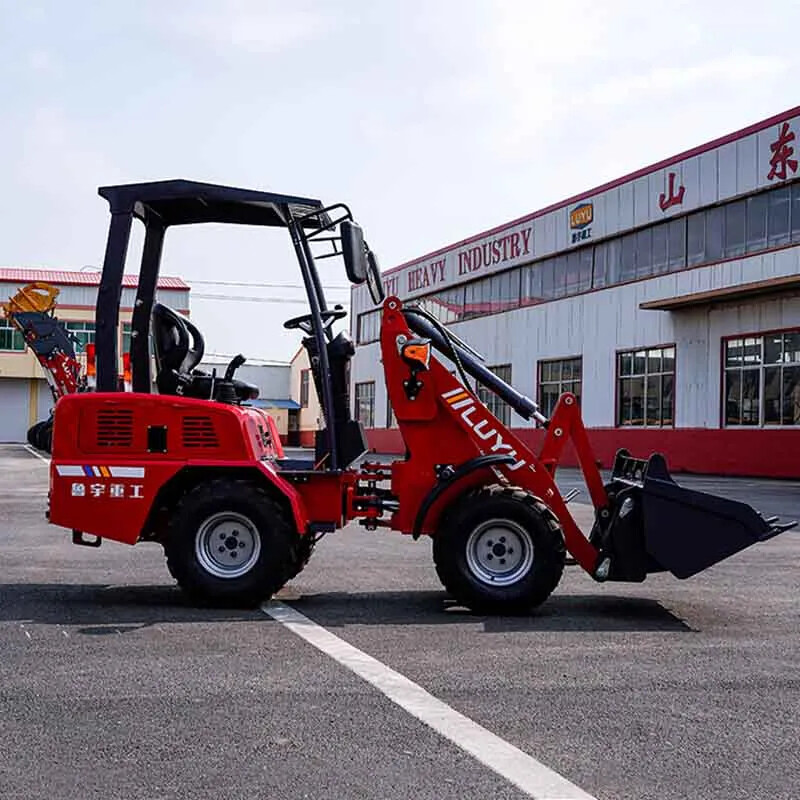

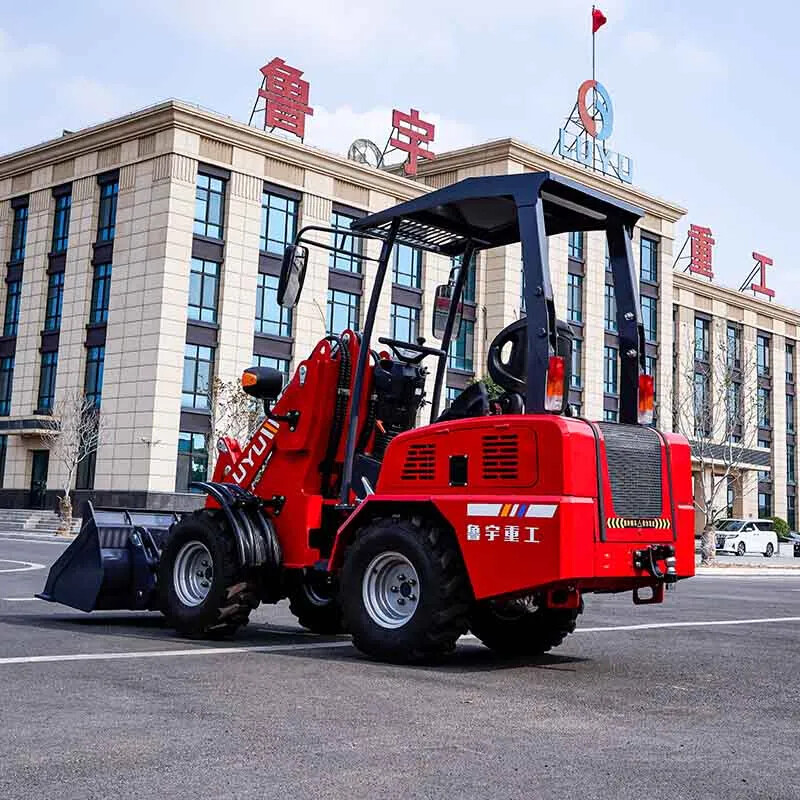

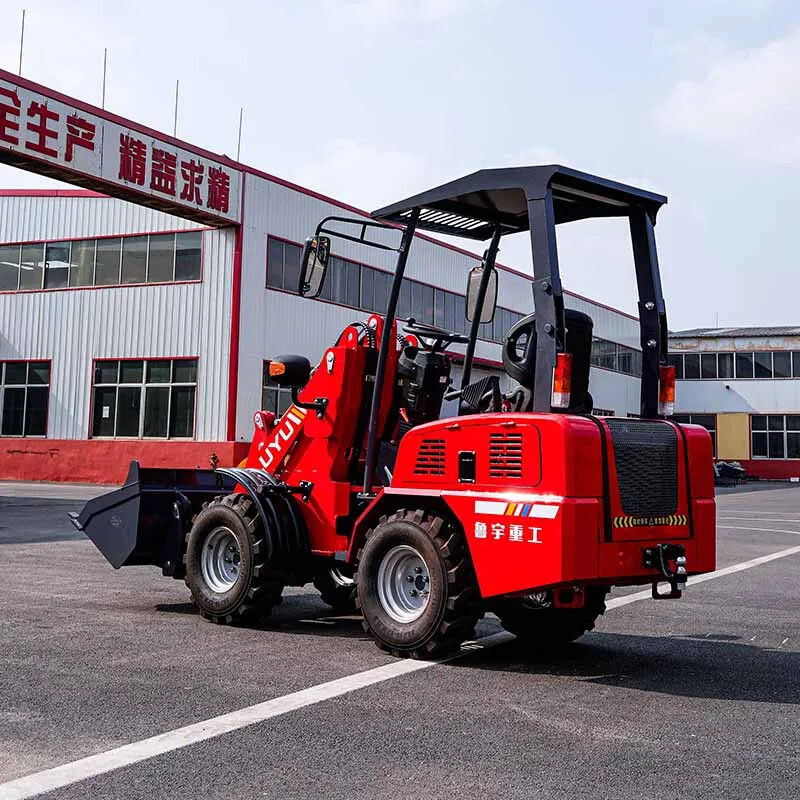

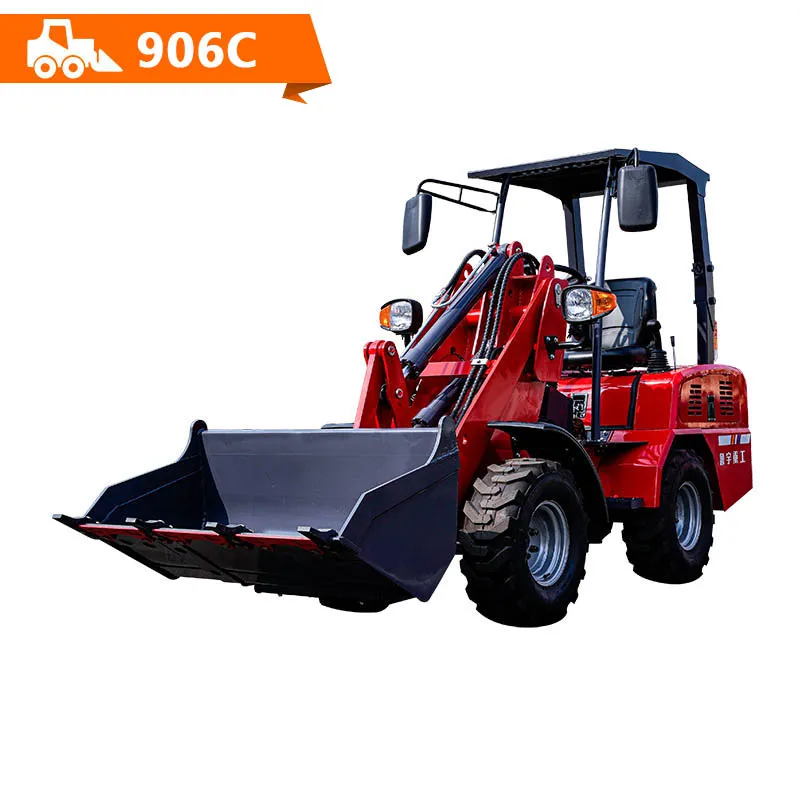

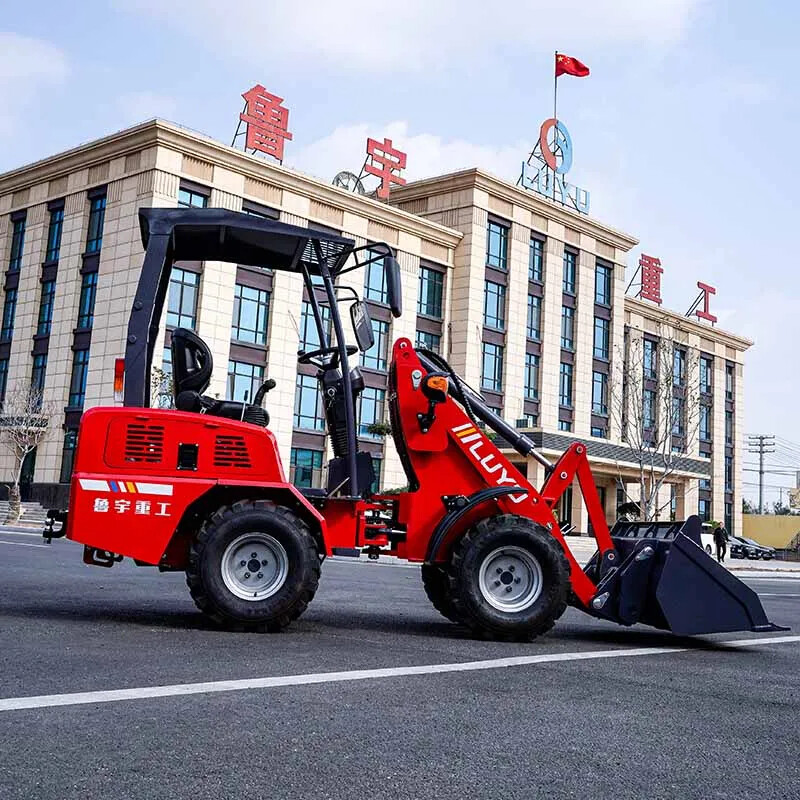

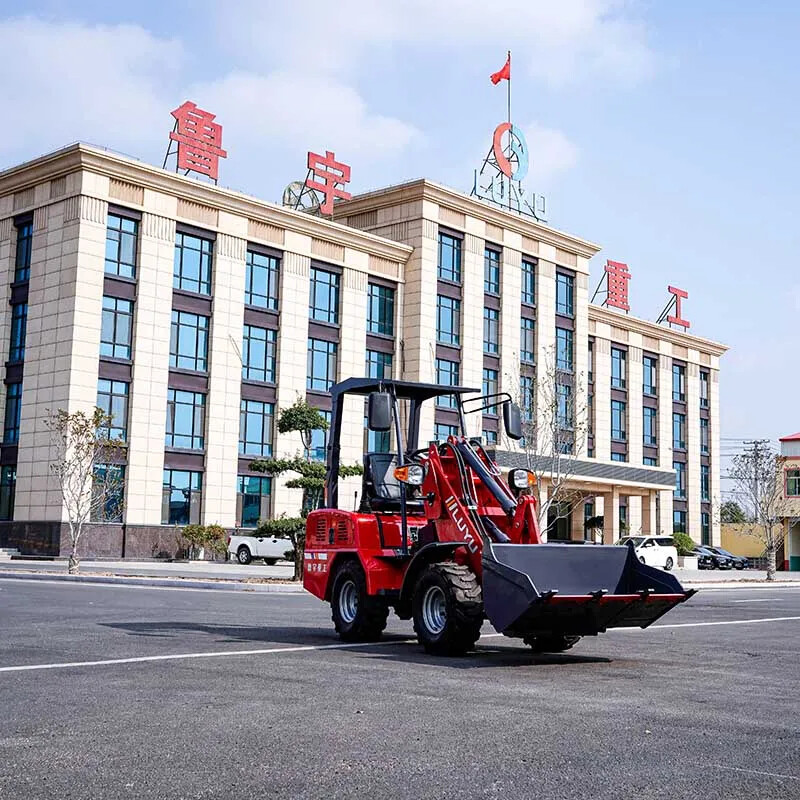

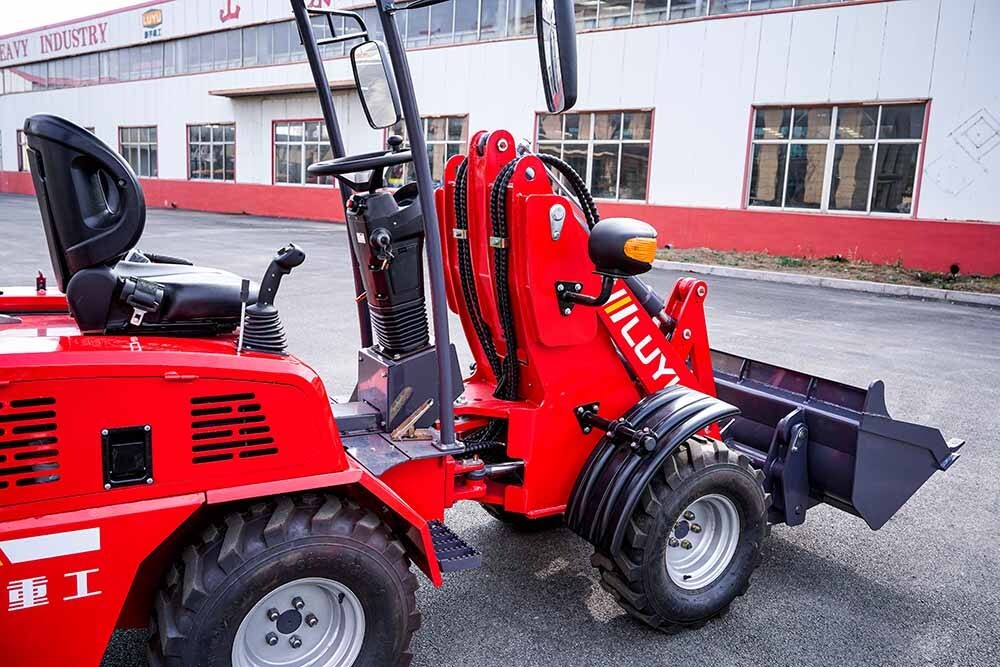

The 906C compact wheel loader developed by LUYU has a working weight of 600kg and a minimum turning radius of 2150mm. Product appearance design conforms to European and American users. The hydrostatic system makes the power transmission more efficient, and can convert the power of the engine into greater traction and work capacity. The control is more flexible, and the driver can precisely operate various actions through the joystick or buttons. At the same time, the maintenance cost is relatively low. Whether you are a driver or buy compact wheel loader for sale, this model is a very good choice.
Engine |
Yanmar 3TNV88-BS SY(Option Kubota 1505-E4) |
Engine Power |
20.2kw/18.5kw |
Rated Rotational Speed |
2200 (turn/min) |
Axle |
B25-21-A10000 |
Drive Form |
Hydrostatic Motor Drive |
Breaking Form |
Rear Axle Hydraulic Shoe Brake |
Tire |
26*12-12 Agricultural Tire |
Length*Width*Height(mm) |
3765*1200*2200 |
Unloading Height(mm) |
2060 |
Unloading Distance(mm) |
550 |
Unloading Angle(°) |
36 |
Minimum Ground Clearance(mm) |
220 |
Turning Radius(mm) |
2150 |
Driving Speed |
0-11km/hour |
Wheelbase(mm) |
1350 |
Truck base(mm) |
895 |
Total Weight(kg) |
1838 |
Maximum Lift Weight(kg) |
600 |
Bucket Width(mm) |
1200 |
Rated Bucket Capacity(m³) |
0.25 |
Lifting Time(s) |
5.8 |
Loading Time(s) |
5.8 |
Landing Time(s) |
5.8 |
Hydraulic System Pressure(Mpa) |
16 |
Due to the compact structure of the 906C compact wheel loader,The distance from the front wheel to the rear counterweight is 2480mm, and one 40HQ can transport 8 sets
The transportation height of the whole vehicle is 2200mm, which can directly enter the 40HQ
The specifications of LUYU 906C compact wheel loader can be adjusted according to different work needs. If you are clear about your work content, you can contact us and send it to our technical team, and we will recommend the most suitable configuration and selection for you. If you want compact wheel loader for sale, please let us know, we will recommend it for you according to the needs of your market. It should be noted that the wheel loader price will also change if the specification or configuration is changed.
1. Compact size: Compared with large wheel loaders, the 600kg compact wheel loader produced by luyu is smaller in size and smaller in size, which is conducive to working in narrow working environments, such as urban road construction or construction sites
2. Mobility: The 600kg compact wheel loader has good maneuverability and is able to move and turn freely in narrow working areas. It can flexibly adapt to the narrow construction environment and improve work efficiency.
3. Load capacity: Although it only has a working weight of 600kg, it is sufficient for handling and loading and unloading materials. And it is a good substitute for labor costs.
4. multipurpose: the wheel loader produced by luyu can quickly change attachments, even in the face of different work requirements, it can be completed smoothly. It can be used for various tasks such as handling, leveling and stacking.
5. Simple operation: LUYU 906C compact wheel loader can operate different actions by joystick and buttons, such as forward, backward, steering, lifting and tilting, etc.

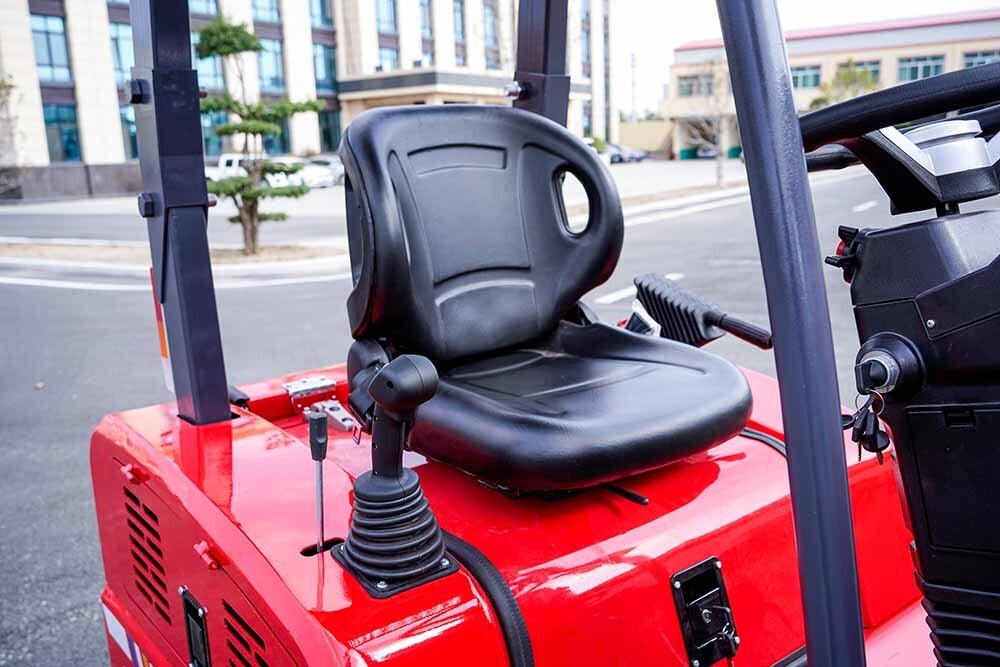

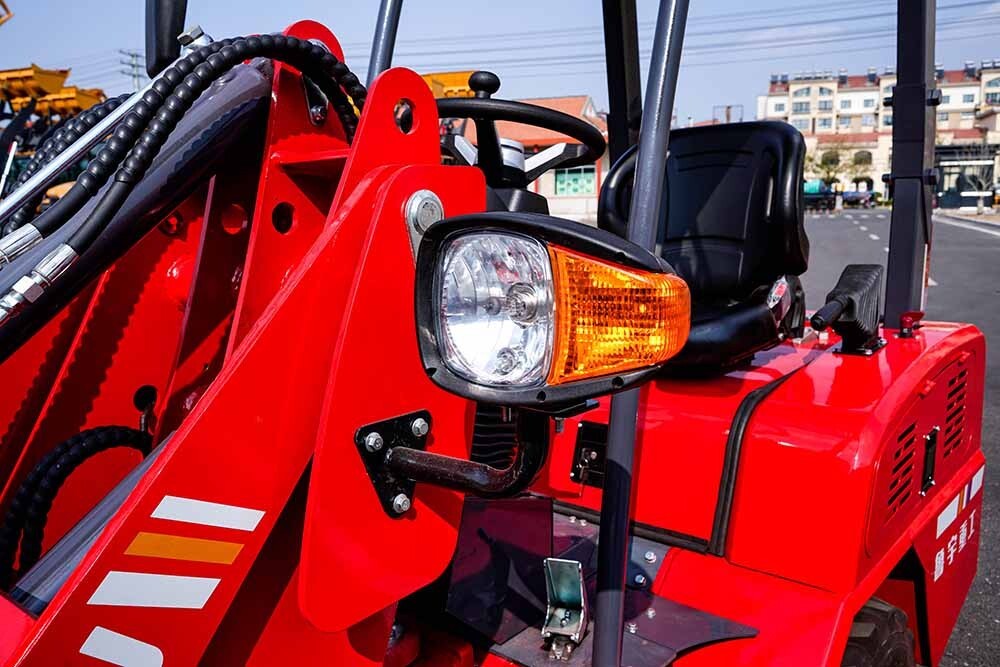

906C compact wheel loader Adjustable seat for better comfort
2. Adopt yanmar engine, compact structure, small size, light weight, good power, small vibration, low noise and good reliability
3. The tire adopts 26*12-12 herringbone vacuum tire, the tread is evenly stressed, and the driving is more stable
4. The rear hood is opened at a large angle, making maintenance and repair more convenient

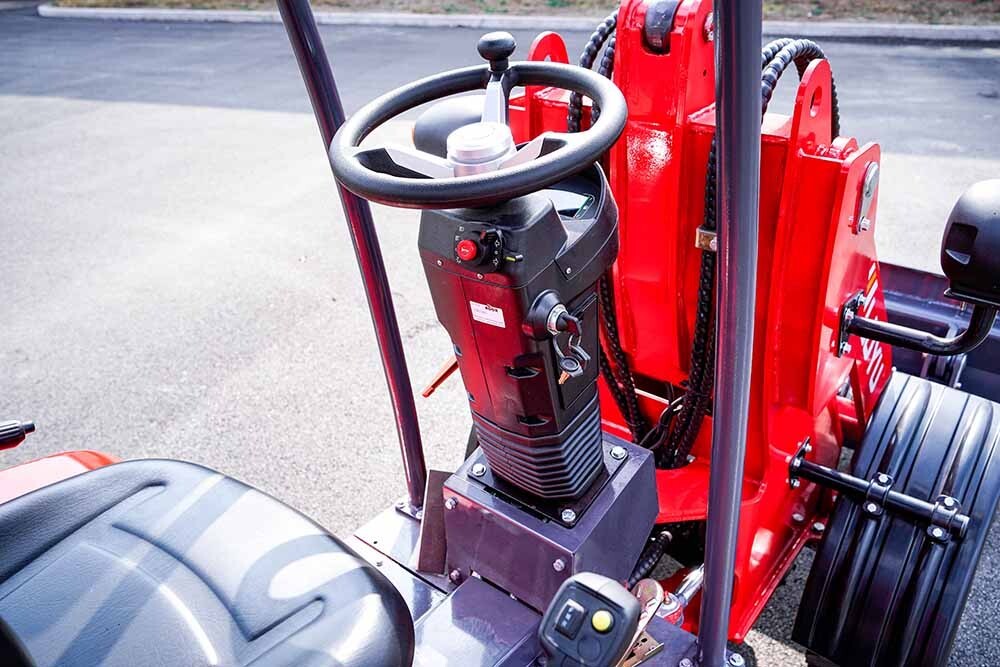

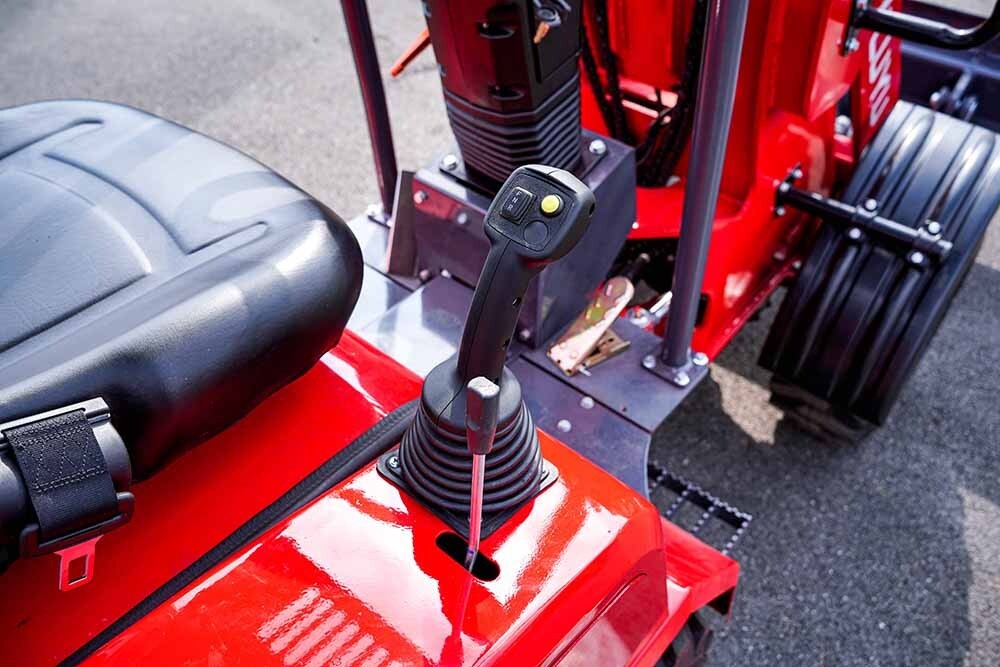

5. The electric control handle is adopted, which integrates multiple functions, and is operated by fingers, which is light and efficient.
6. Equipped with a quick change device, quickly and easily realize multi-attachment switching
Due to the compact structure of the 906C compact wheel loader,The distance from the front wheel to the rear counterweight is 2480mm, and one 40HQ can transport 8 sets
The transportation height of the whole vehicle is 2200mm, which can directly enter the 40HQ
