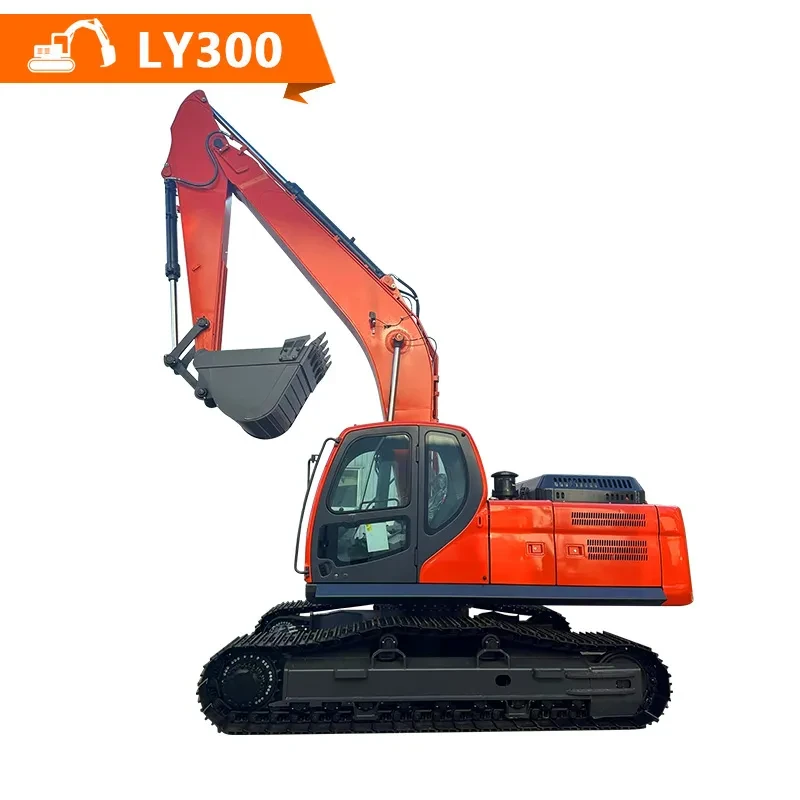

The LY300 crawler extractor has a working weight of 30 tons and is suitable for various large-scale earthwork, construction, and mining projects. Its main features include excellent excavation ability, flexibility, and durability. It can be equipped with Cummins or Isuzu 6HK1 engines, hydraulic pumps using Kawasaki 140, control valves and slewing using Doushan brand, with a longer service life, reduced maintenance frequency, and higher efficiency. The LY300 crawler extractor has an intuitive control system that allows operators to easily grasp its operation. To ensure the safety of operators, multiple safety functions are usually equipped, such as anti overturning systems, emergency stop buttons, and safety belts.
Maintenance is crucial for the performance and lifespan of LY300 crawler excavato. As one of the largest construction machinery manufacturers in China, Luyu provides users with detailed maintenance guidelines. We also provide a wide range of after-sales services, including training, maintenance support, and spare parts supply, to ensure optimal performance in use.
Machine weight(Ton) |
30 |
Operating weight(kg) |
3000 |
Bucket capacity(m³) |
1.4 |
Engine |
CUMMINS/Isuzu 6HK1 |
Rated power(kW/rpm) |
212/2000 |
Hydraulic pump |
Kawasaki140 |
control valve |
Doosan |
rotation |
Doosan |
Excavator size |
|
Transportation length(mm) |
10815 |
Transport width(mm) |
3200 |
Transport height(mm) |
3515 |
Crawler length(mm) |
4940 |
Crawler Width(mm) |
600 |
Ground clearance(mm) |
1150 |
Fuel tank capacity |
|
fuel tank(L) |
500 |
hydraulic tank |
280 |
work scope |
|
Maximum working radius(mm) |
10702 |
Maximum Digging Depth(mm) |
7250 |
Maximum excavation height(mm) |
10315 |
Maximum Dumping Height(mm) |
7303 |
Infrastructure construction: This includes the construction of infrastructure projects such as roads, bridges, tunnels, and embankments. A 30 ton crawler excavator is used for excavation, landfill, and earthworks to ensure the smooth construction of infrastructure.
Earthwork: Used for large-scale earthworks such as foundation leveling, land improvement, soil excavation, and soil transportation.
Mining: In the mining industry, these excavators are used for mining, material handling, and mining operations, improving mining efficiency.
Construction site: Used for large-scale construction projects, high-rise buildings, and earthwork work, such as excavation of underground parking lots, infrastructure construction, etc.
Water engineering: In water engineering projects, it includes river cleaning, river restoration, dam construction, and waterway sludge cleaning.
Agriculture: In the field of agriculture, these excavators are used for excavation of drainage systems, soil improvement, tree planting, and land leveling.
Dredging: Used to clean ponds, lakes, rivers, and ports to improve water circulation and quality.
Garden and Landscape Engineering: Used for courtyard, park, and landscape renovation projects, including earthwork, shaping, tree planting, and landscape construction.
Logistics and warehousing: Their mobility is very useful for handling and loading and unloading goods in warehouses, especially when operating within limited space.
