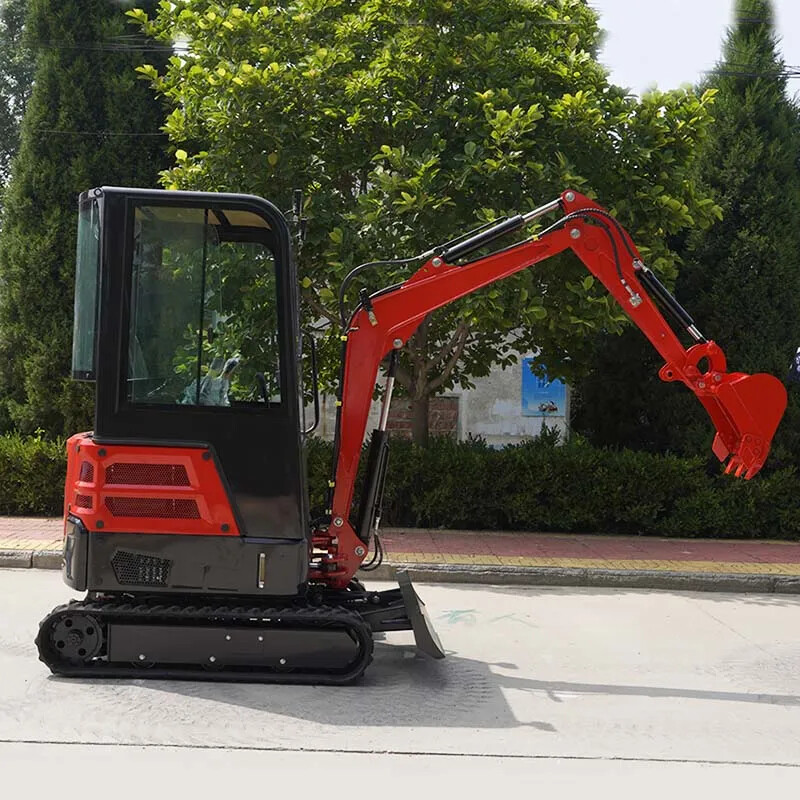

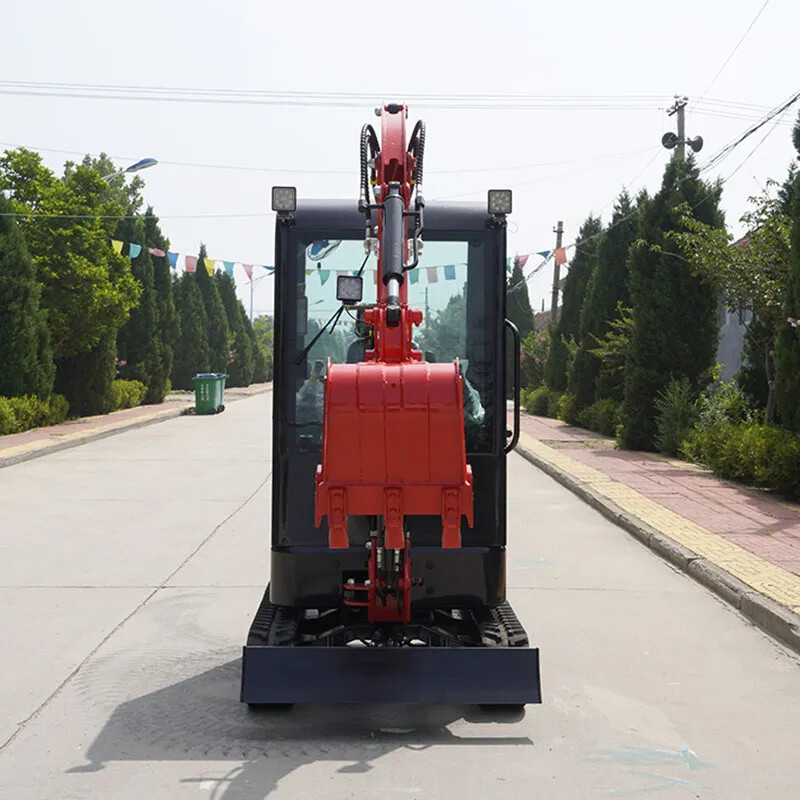

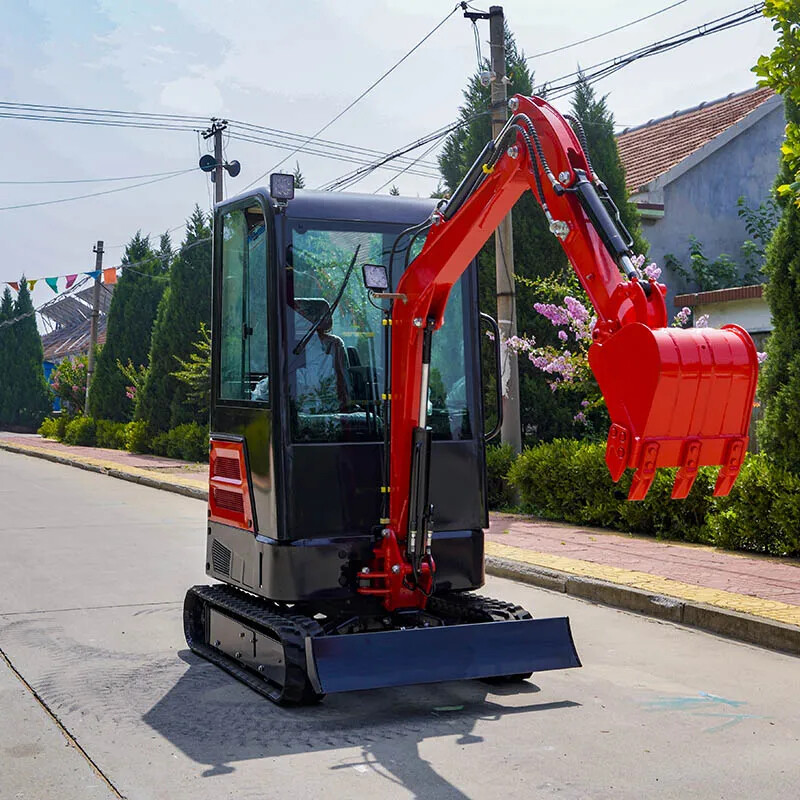

2 Ton Mini excavators
Shandong Luyu International Heavy Industry is a professional production and export enterprise integrating the design, development and production of various types of heavy machinery. Such as excavators, loaders, tractors, etc. The factory is located in Yantai City, Shandong Province, with convenient transportation. Among them, LZ-20 2 Ton Mini Crawler Excavators is one of the main products promoted by Shandong Luyu International Heavy Industry. The shape of LZ-20 2 Ton Mini excavators adopts a unique patented streamlined appearance with a small tailless design, which is well received by domestic and foreign buyers. Likes and reviews.
Rated power1OKW/13.5HP
Operating weight1000kg
Dumping height 1861mm
Digging depth1825mm


Shandong Luyu International Heavy Industry is a professional production and export enterprise integrating the design, development and production of various types of heavy machinery. Such as excavators, loaders, tractors, etc. The factory is located in Yantai City, Shandong Province, with convenient transportation. Among them, LZ-20 2 Ton Mini Crawler Excavators is one of the main products promoted by Shandong Luyu International Heavy Industry. The shape of LZ-20 2 Ton Mini excavators adopts a unique patented streamlined appearance with a small tailless design, which is well received by domestic and foreign buyers. Likes and reviews.

PARAMETERS


Product Description

The small tailless design of the 2 ton mini excavator makes the mini excavator have excellent maneuverability. Its tail does not extend beyond the track of the frame, so it is more convenient to operate in a small job site or in a limited space. The small tailless design allows the excavator to turn and move freely in narrow streets, between buildings or other restricted spaces, improving operational flexibility and efficiency. Not only that, the small tailless design of the LZ-20 2 Ton Mini excavators enables the entire body to rotate in all directions, that is, 360-degree rotation. Compared with traditional excavators that need to move the entire body for steering, small tailless excavators can rotate in situ without requiring additional space. This ability makes it easier for the mini excavator to turn and adjust its position in a narrow area, greatly improving the flexibility and efficiency of the operation. In addition, the small tailless design can reduce the risk of collision with the surrounding environment. It is safer when operating in a narrow space and can avoid collisions with walls, obstacles or other equipment.

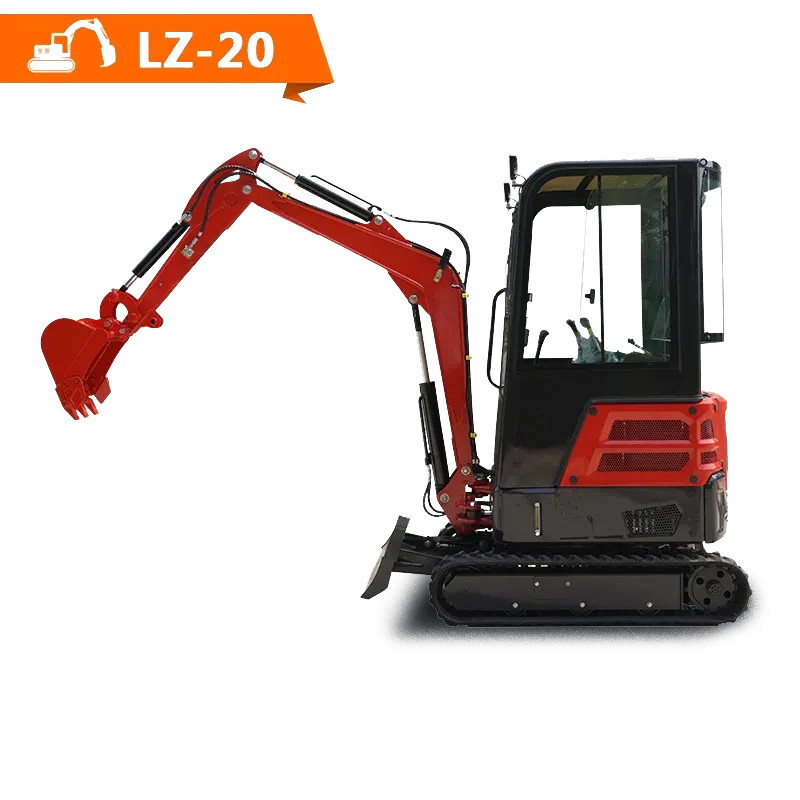

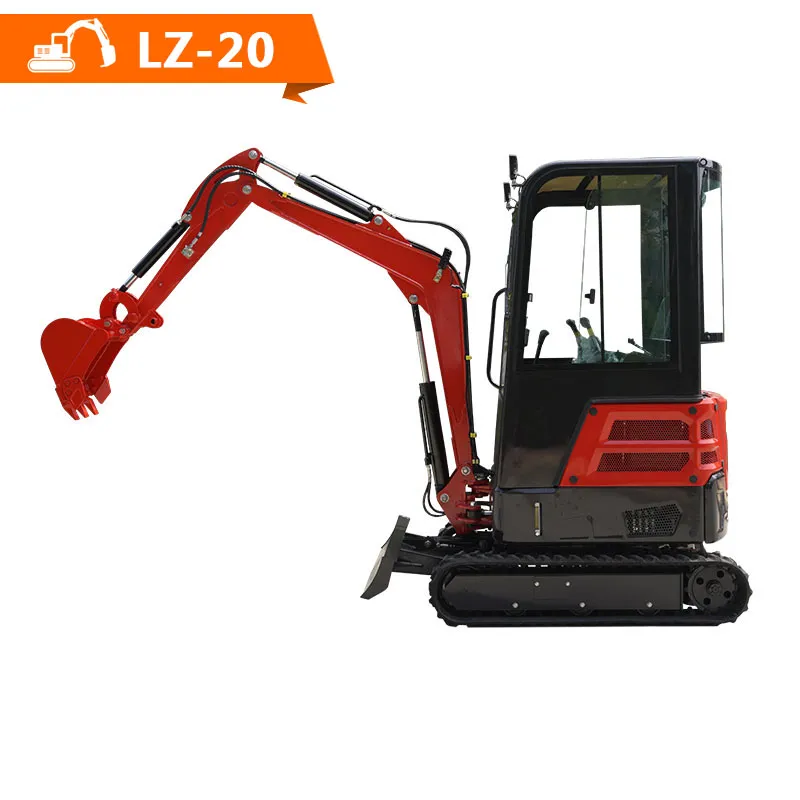

LZ-20 2 Ton Mini Crawler Excavators Specifications

EngineLD390
Power30KW
Bucket capacity0.045m³
Excavation height2950MM
Excavation depth2150MM
Unloading height2230MM
Ground clearance385MM
Wheel spacing770MM
Chassis width1180MM
weight1650KG
Radius of gyration1190MM
Bucket width400MM
track width 200MM
Track length1500MM
Transport length2300MM
Full vehicle height2150MM
Overall size2300*1150*2150MM
Vertical excavation depth2050MM
Ground excavation radius2500MM

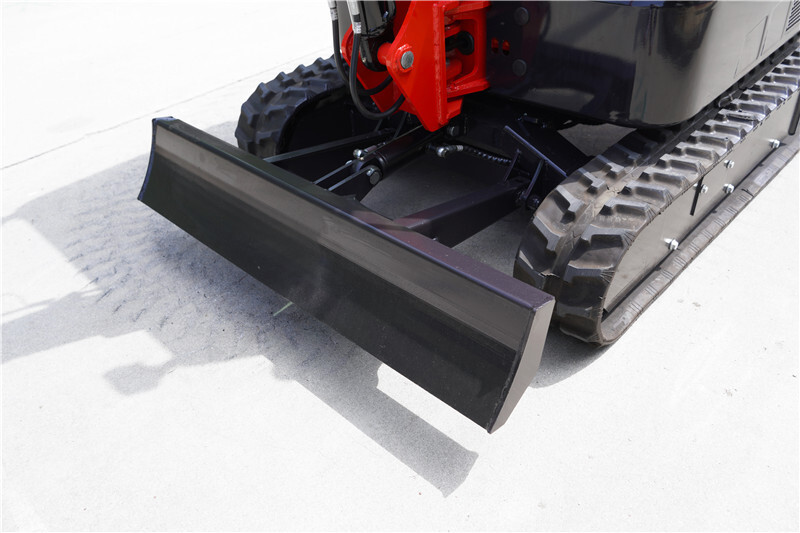

Bulldozer lift height325MM


The overall size of the LZ-20 2 Ton Mini excavators is 2300*1150*2150MM. It is worth noting that the crawler tracks of this model are optional. When you need to enter a narrow space, you can narrow the track width. When you are doing construction, you can widen the track width, which will be more stable. If you are clear about your work content, you can contact us and send it to our technical team, and we will recommend the most suitable configuration and selection for you.


Product Advantages

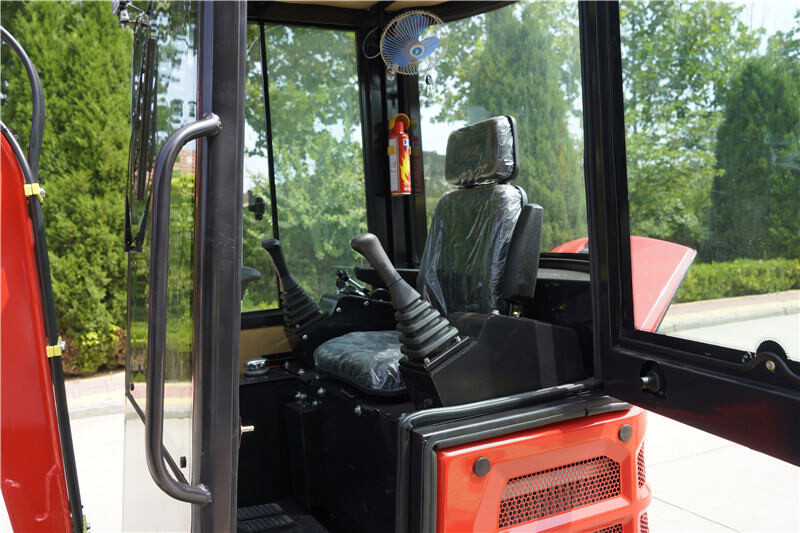

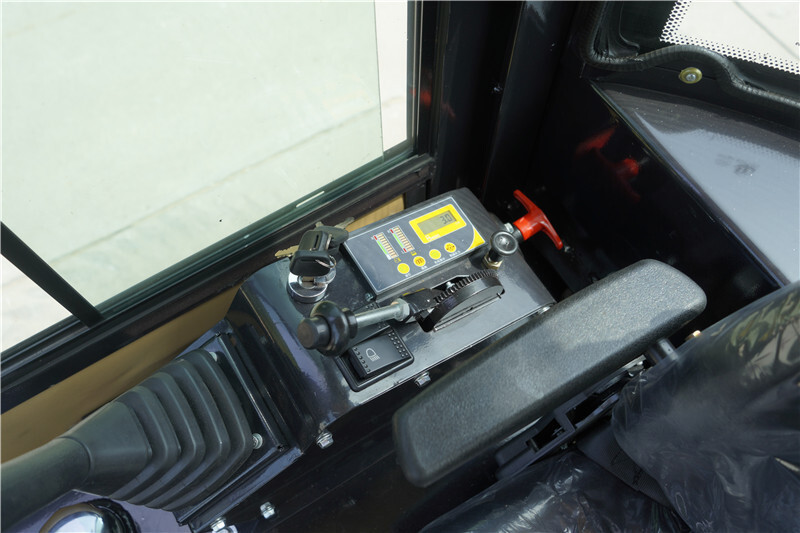

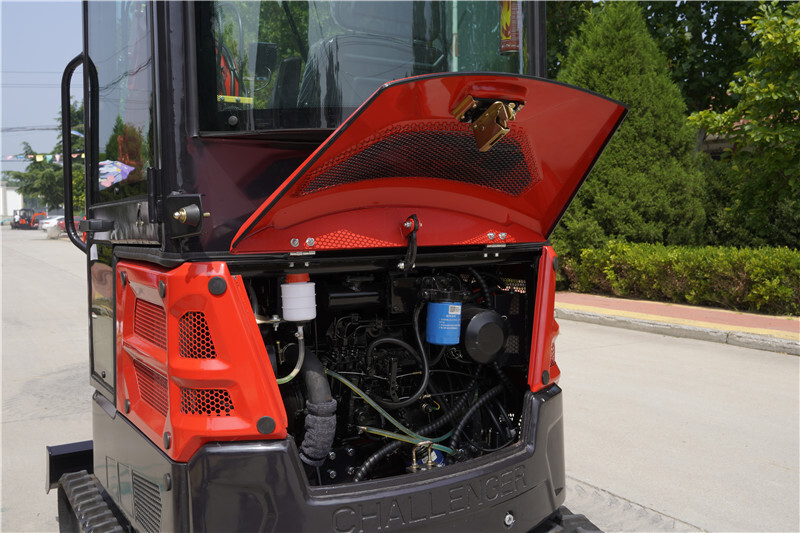

The rotary motor and hydraulic motor used by LZ-20 2 Ton Mini excavators are American Eaton motors, with stable quality and low failure rate. The engine can also be equipped with multiple brands, such as Kubota, yanmar, koop, etc. The seat is also upgraded to Upholstered seats, seat belts with headrests, armrests, etc. and four-way adjustable, safe and comfortable, reduce the driver's fatigue after long hours of work, and improve work efficiency. At the same time, LZ-20 2 Ton Mini excavators are equipped with modular cast iron rear counterweights, making the body more stable, digging more powerfully, with high protection levels and more beautiful appearance. This model is also equipped with an electronic display with various functions such as timer, pressure gauge, and voltmeter, making operation easier and more convenient.


Function Introduction

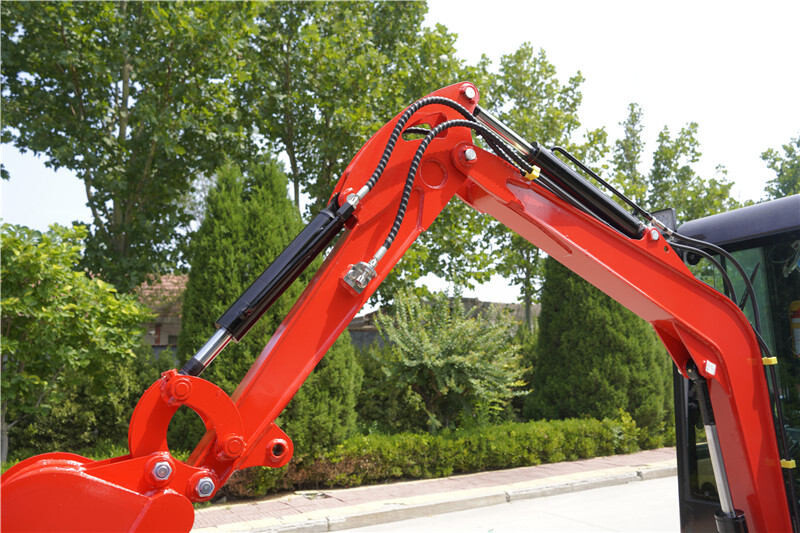

LZ-20 2 Ton Mini excavators is one of the main products promoted by Luyu Heavy Industry. We have equipped this model with a hydraulic pilot system as standard. The hydraulic pilot system uses hydraulic components and electronic controllers to enable precise control and regulation. By adjusting the opening and flow of the hydraulic valve, the speed, force and position of the actuator can be precisely controlled. It has greater flexibility and can realize precise control under various working conditions. Therefore, the hydraulic pilot system has lower requirements on the driver's operation, is easier to use, and is more gentle and labor-saving in operation, with higher work efficiency. LZ-20 2 Ton Mini excavators are fully hydraulically controlled in the true sense, with all hydraulic controls such as big and small arm operations, crushing, and dozing. After shutting down, the handle and pedals are operated, and all parts do not release pressure or fall, which is safe and reliable.
