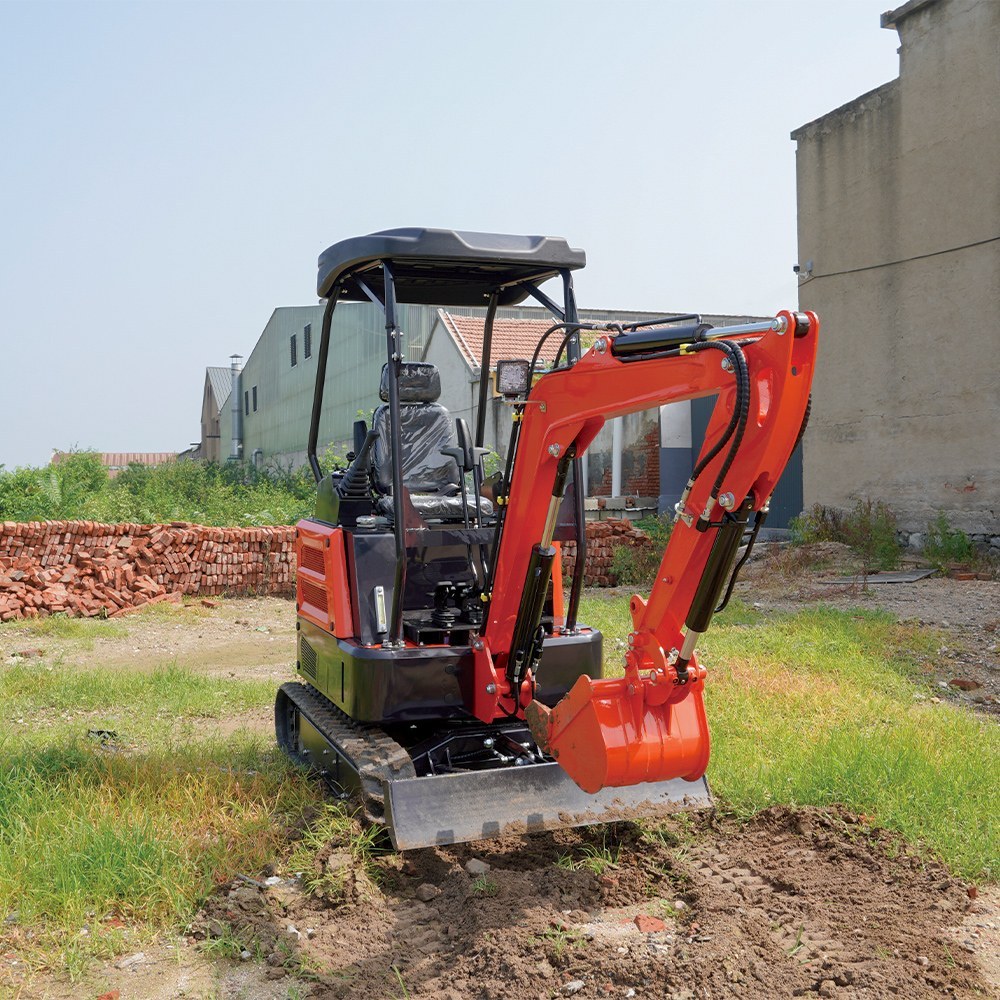

LZ20 2 ton mini excavator
LZ-20 2 Ton Mini Crawler Excavators is one of the main products promoted by Shandong Luyu International Heavy Industry. The shape of LZ-20 2 Ton Mini excavators adopts a unique patented streamlined appearance with a small tailless design, which is well received by domestic and foreign buyers. Likes and reviews.
EngineChangchai390
Rated power20Kw/29HP
Operating weight2000kg
Bucket capacity0.05m³

‹

  • LZ20 2 ton mini excavator
  • LZ20 2 ton mini excavator
  • LZ20 2 ton mini excavator
  • LZ20 2 ton mini excavator
  • LZ20 2 ton mini excavator
  • LZ20 2 ton mini excavator
  • LZ20 2 ton mini excavator

›

Inquiry
Contact us
Download
LZ-20 2 Ton Mini Crawler Excavators is one of the main products promoted by Shandong Luyu International Heavy Industry. The shape of LZ-20 2 Ton Mini excavators adopts a unique patented streamlined appearance with a small tailless design, which is well received by domestic and foreign buyers. Likes and reviews.

PARAMETERS

EngineChangchai390
Rated power20Kw/29HP
Operating weight2000kg
Bucket capacity0.05m³
Dumping height2230mm
Digging depth2150mm
Overall dimension2400*1150*2200mm
Bucket width400mm
Digging height2950mm
Bucket digging force10.5KN


The overall size of the LZ-20 2 Ton Mini excavators is 2300*1150*2150MM. It is worth noting that the crawler tracks of this model are optional. When you need to enter a narrow space, you can narrow the track width. When you are doing construction, you can widen the track width, which will be more stable. If you are clear about your work content, you can contact us and send it to our technical team, and we will recommend the most suitable configuration and selection for you.

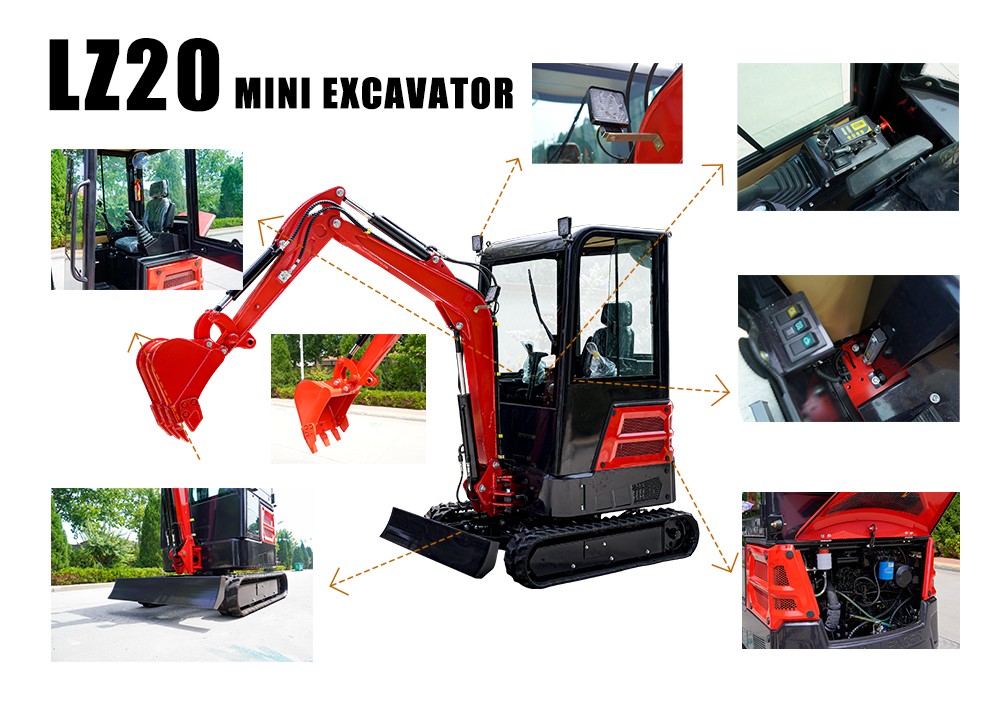

DETAILS

ADVANTAGES

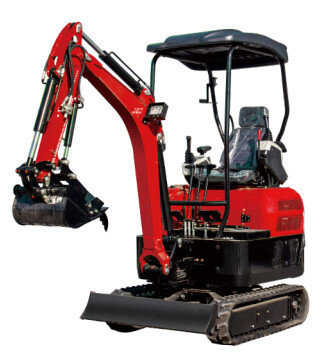

The rotary motor and hydraulic motor used by LZ-20 2 Ton Mini excavators are American Eaton motors, with stable quality and low failure rate. The engine can also be equipped with multiple brands, such as Kubota, yanmar, koop, etc. The seat is also upgraded to Upholstered seats, seat belts with headrests, armrests, etc. and four-way adjustable, safe and comfortable, reduce the driver's fatigue after long hours of work, and improve work efficiency. At the same time, LZ-20 2 Ton Mini excavators are equipped with modular cast iron rear counterweights, making the body more stable, digging more powerfully, with high protection levels and more beautiful appearance. This model is also equipped with an electronic display with various functions such as timer, pressure gauge, and voltmeter, making operation easier and more convenient.

FAQ

LZ-20 2 Ton Mini excavators is one of the main products promoted by Luyu Heavy Industry. We have equipped this model with a hydraulic pilot system as standard. The hydraulic pilot system uses hydraulic components and electronic controllers to enable precise control and regulation. By adjusting the opening and flow of the hydraulic valve, the speed, force and position of the actuator can be precisely controlled. It has greater flexibility and can realize precise control under various working conditions. Therefore, the hydraulic pilot system has lower requirements on the driver's operation, is easier to use, and is more gentle and labor-saving in operation, with higher work efficiency. LZ-20 2 Ton Mini excavators are fully hydraulically controlled in the true sense, with all hydraulic controls such as big and small arm operations, crushing, and dozing. After shutting down, the handle and pedals are operated, and all parts do not release pressure or fall, which is safe and reliable.
