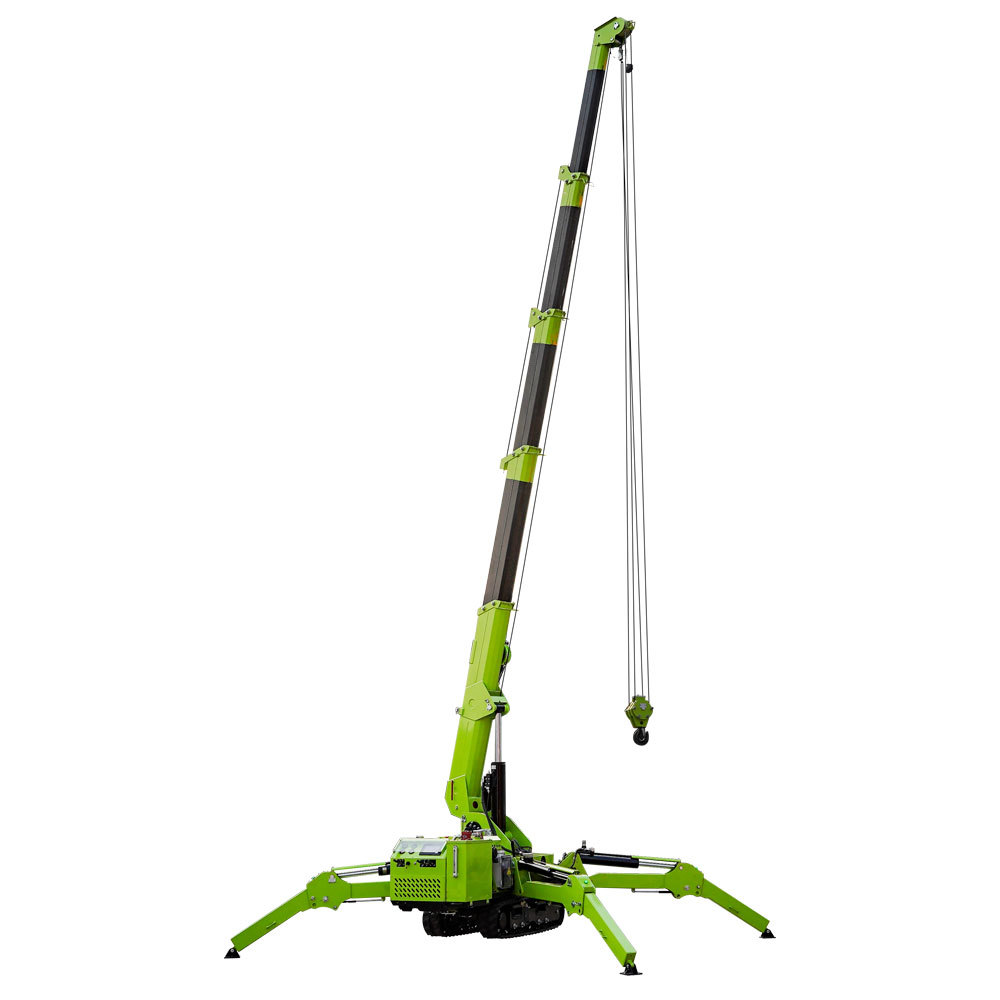

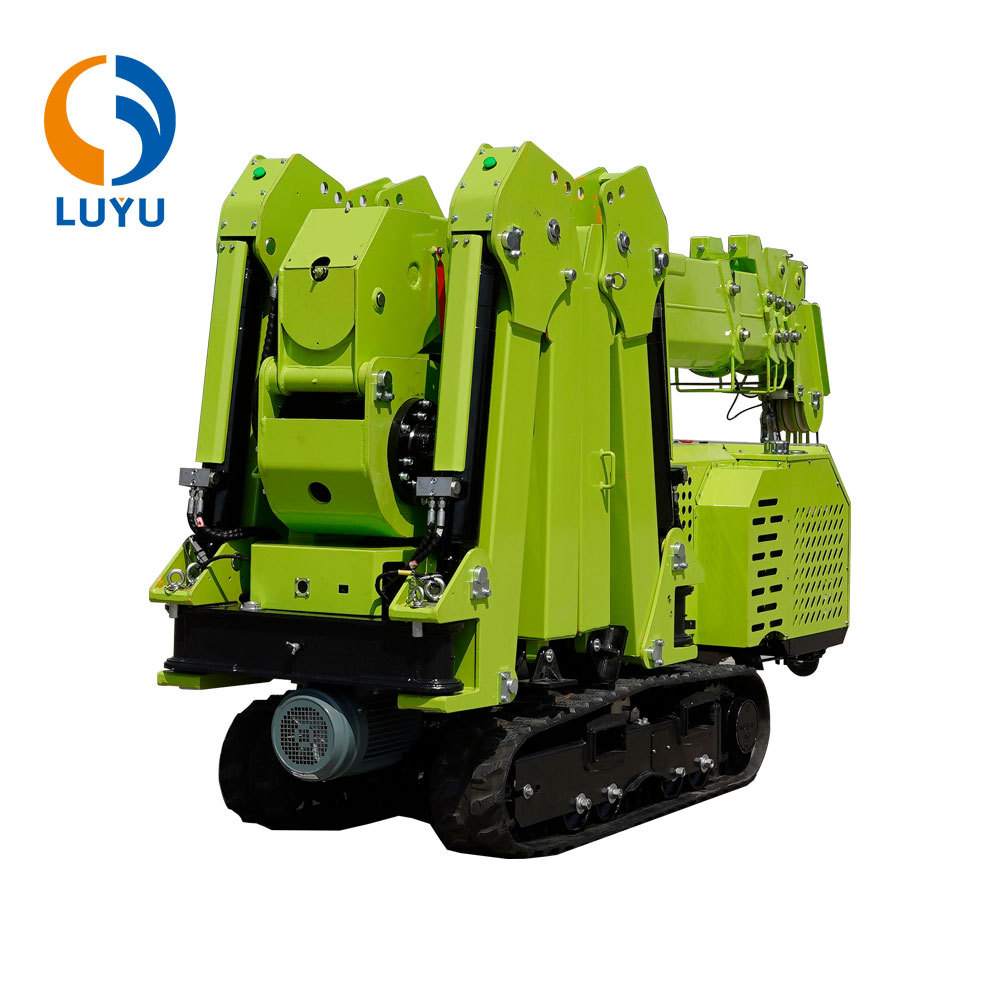

The KB-3.0 spider crawler crane is designed with a crawler traveling mechanism and hydraulic system for lifting, tensioning and winding devices. The crane adopts advanced design methods such as UG 3D modeling, CAE component limit analysis and computer aided design to ensure flexibility, reliability and ease of operation.

Product Overview

Features

 Flexibility: Excellent maneuverability for all terrains.

 Reliability: High reliability of major components.

 Comfort: Comfortable and easy to operate.

 Compactness: Simple and compact structure.

 Stability: Stable performance and reliable operation.

 Maintenance: Easy to maintain.

Application field

The crane is widely used in mountainous areas, electric power operations, narrow construction sites and industrial factories.

Main Technical Parameters

Crane specifications

 Model: YN3.0 crawler crane

 Capacity: 2.95T*1.3M

 Dimension: 2890mmx800mmx1700mm

 Starting Mode: Fuel/Electric Start

Anti-Tilt Protection System and Indicator Light Usage Instructions

During hoisting operations, when the outriggers are working normally, the four green outrigger indicator lights are on. When overloaded or any outrigger leaves the ground, the corresponding indicator light goes out, the buzzer sounds simultaneously, and the protection device immediately outputs an overload control signal, cooperating with the crane control circuit to limit outrigger movement.

To cancel the alarm, press the reset button, reduce the lifting torque until the alarm is completely lifted, then release the reset button.
