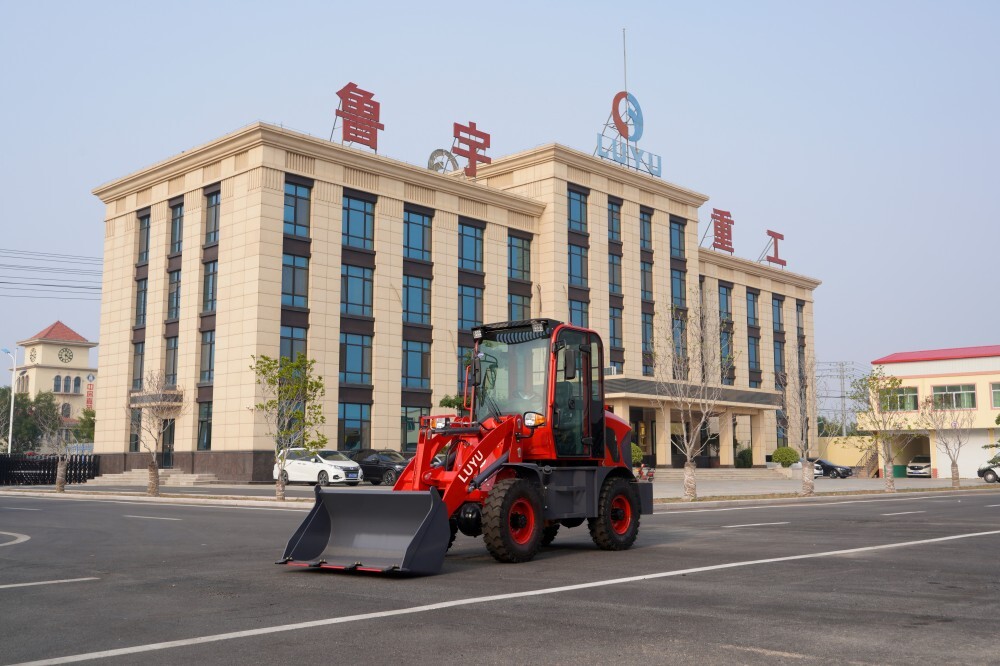

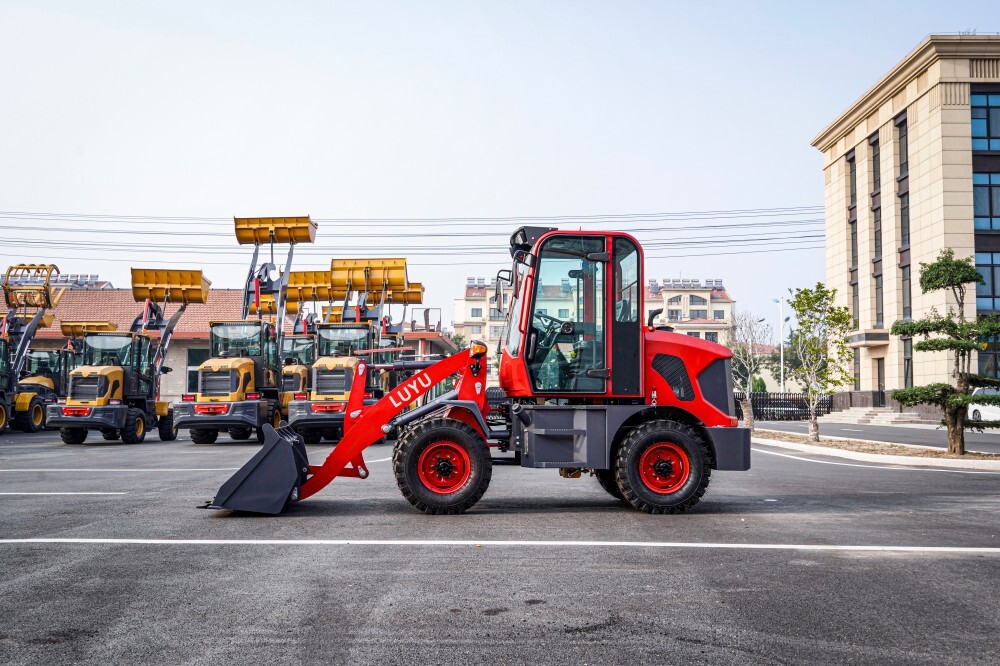

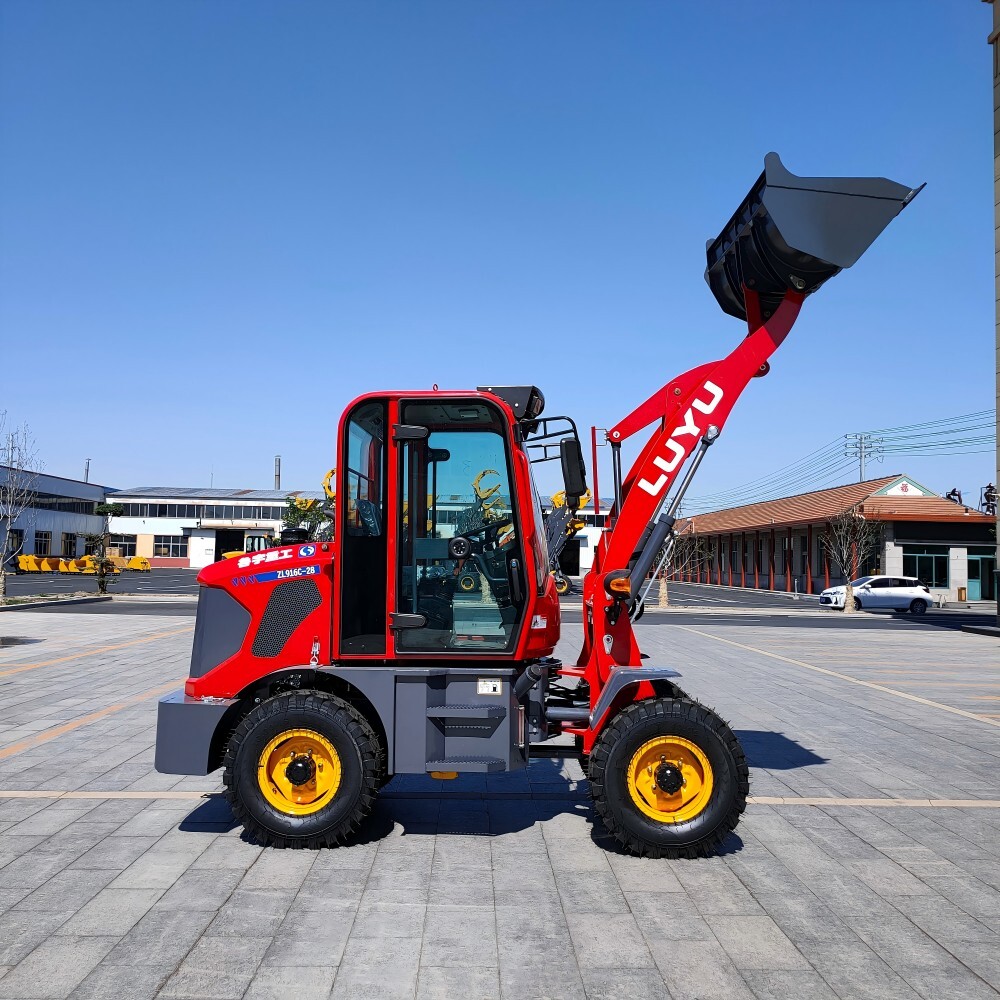

920F Compact Wheel Loader
920F Wheel Loader, a powerhouse in the construction industry, boasts an impressive Engine Power of 37KW, Operating Weight of 1500kg, and a Bucket Capacity ranging from 0.5m3 .
EngineYunnei25(37kw/50hp)
Rated load1000kg
Dumping height2800mm
Bucket capacity0.5m³

920F Wheel Loader, a powerhouse in the construction industry, boasts an impressive Engine Power of 37KW, Operating Weight of 1500kg, and a Bucket Capacity ranging from 0.5m3 .

PARAMETERS

EngineYunnei25(37kw/50hp)
Rated load1000kg
Dumping height2800mm
Bucket capacity0.5m³
Tire10-16
Unloading distance 700mm
Total weight2500kg
Size(L*W*H)4950*1510*2510mm
Bucket width1400mm
Arm thickness16mm
Boom center distance680mm
Cylinder size45/70mm
Thickness of upper plate14mm
Hinge plate20/12mm
Wheel track1090mm
Wheel base1930mm
Min.ground clearance240mm


920F Wheel Loader, a powerhouse in the construction industry, boasts an impressive Engine Power of 37KW, Operating Weight of 1500kg, and a Bucket Capacity ranging from 0.5m3 . This beast of a machine is engineered for maximum efficiency, mobility, and flexibility, revolutionizing loading and hauling operations while minimizing costs.

What truly sets the 920C apart are its efficiency enhancements that not only save fuel but also increase productivity. Incorporating advanced technologies such as On-Demand Throttle and Enhanced Economy Mode. Additionally, features like Tire Slip Prevention and Tire Set automation enhance tire life, productivity, and efficiency during challenging dig cycles.
