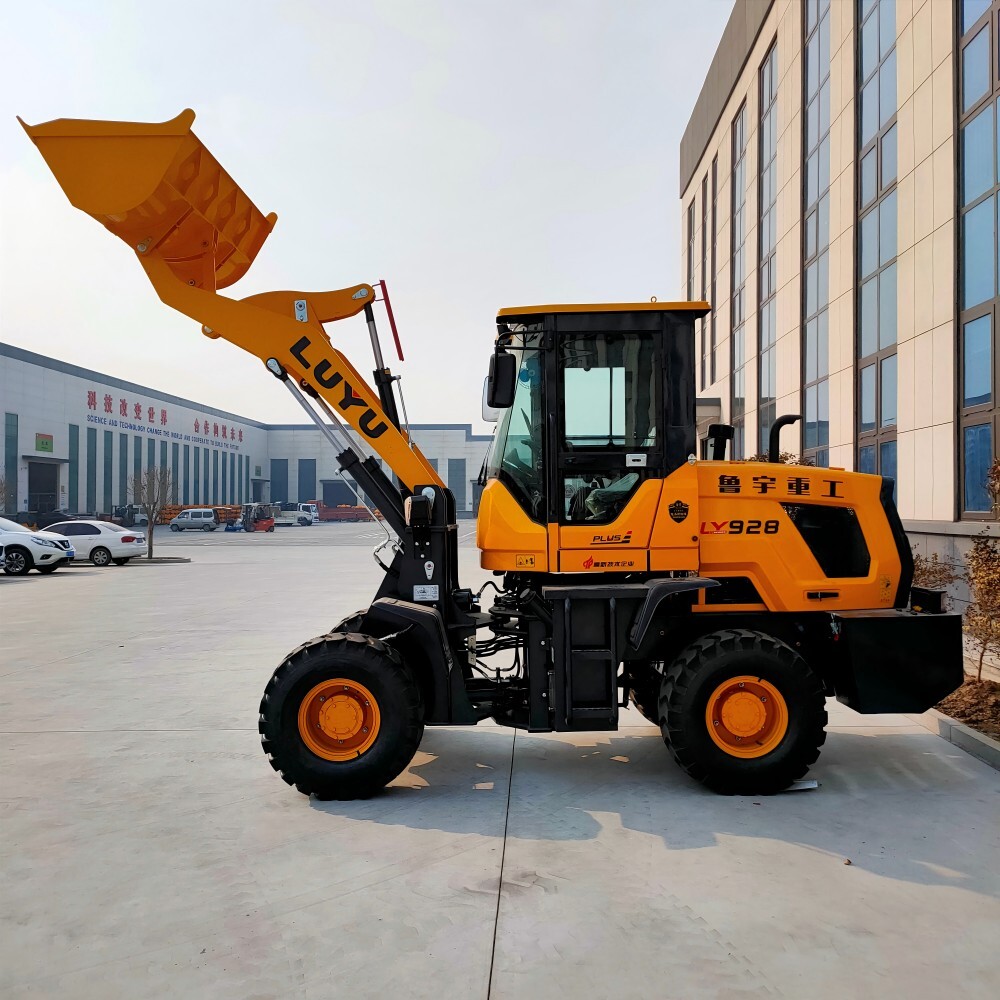

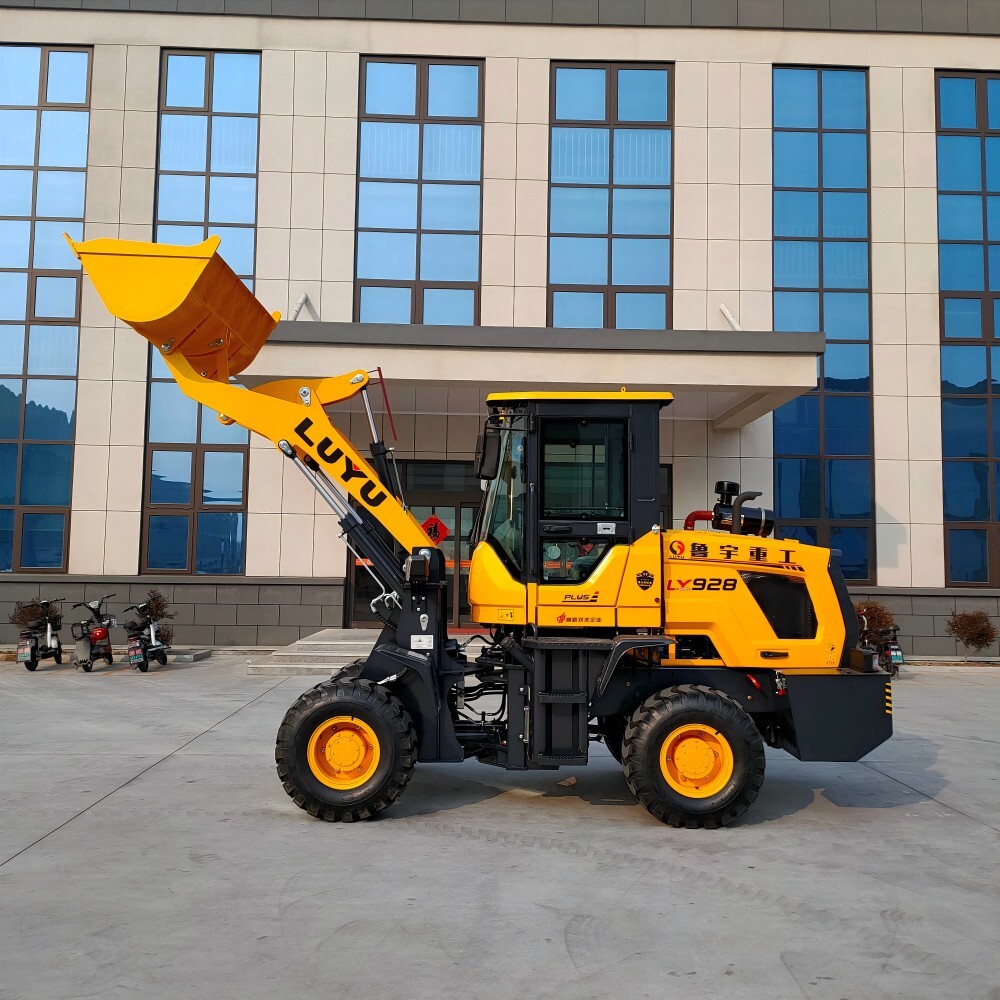

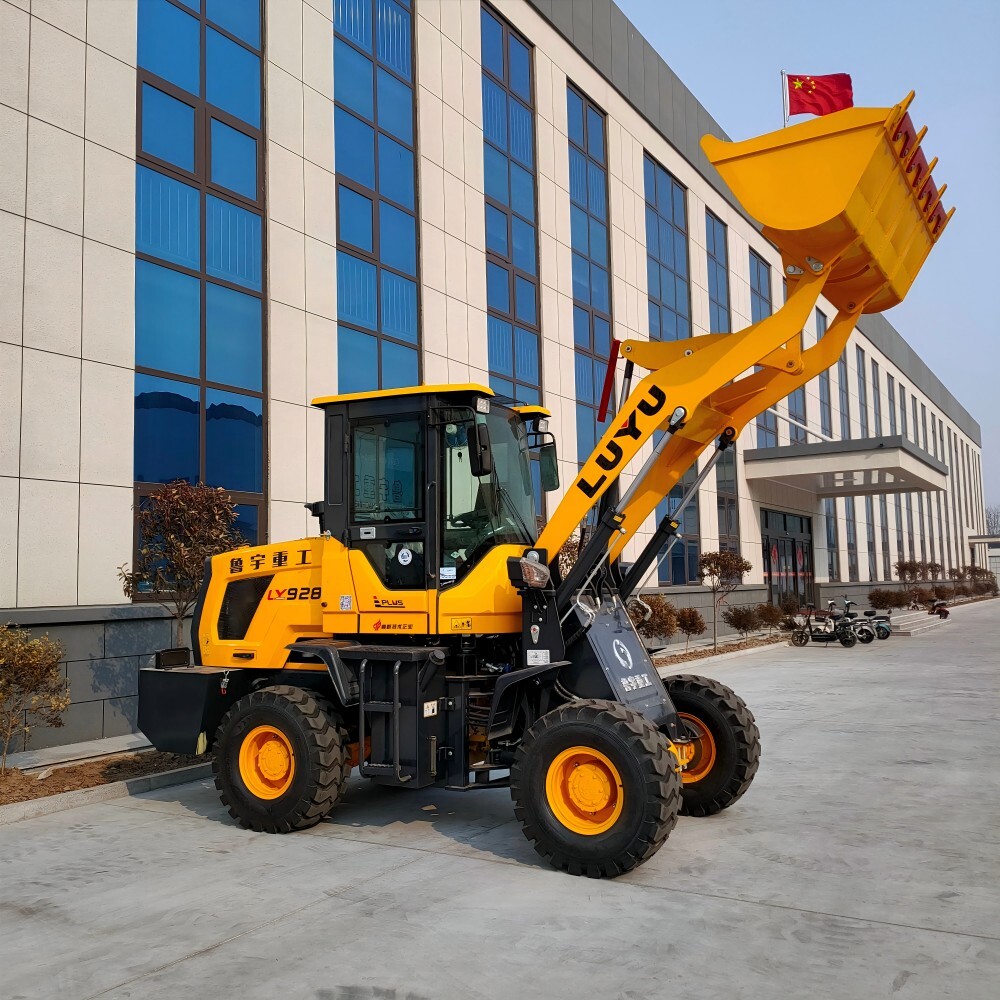

928FC Compact Wheel Loader
1.5ton compact loader is designed for efficient operation, equipped with YN27 engine (42KW/56HP). The rated load is 1500kg, equipped with 0.6-0.7m³ wear-resistant bucket, and the double-arm structure greatly improves the stability of the whole machine.
EngineYN27(42KW/56HP)
Rated load1500kg
Dumping height3200mm
Bucket capacity0.8m³

1.5ton compact loader is designed for efficient operation, equipped with YN27 engine (42KW/56HP). The rated load is 1500kg, equipped with 0.6-0.7m³ wear-resistant bucket, and the double-arm structure greatly improves the stability of the whole machine.

PARAMETERS

EngineYN27(42KW/56HP)
Rated load1500kg
Dumping height3200mm
Bucket capacity0.8m³
Tire20.5-16
Unloading distance820mm
Total weight3800kg
Size(L*W*H)5600*1810*2680mm
Bucket width2000mm
Arm thickness25mm
Boom center distance920mm
Cylinder size45/80mm
Cylinder size50/90mm
Thickness of upper plate20mm
Hinge plate25/16mm
Wheel track1490mm
Wheel base2155mm



DETAILS

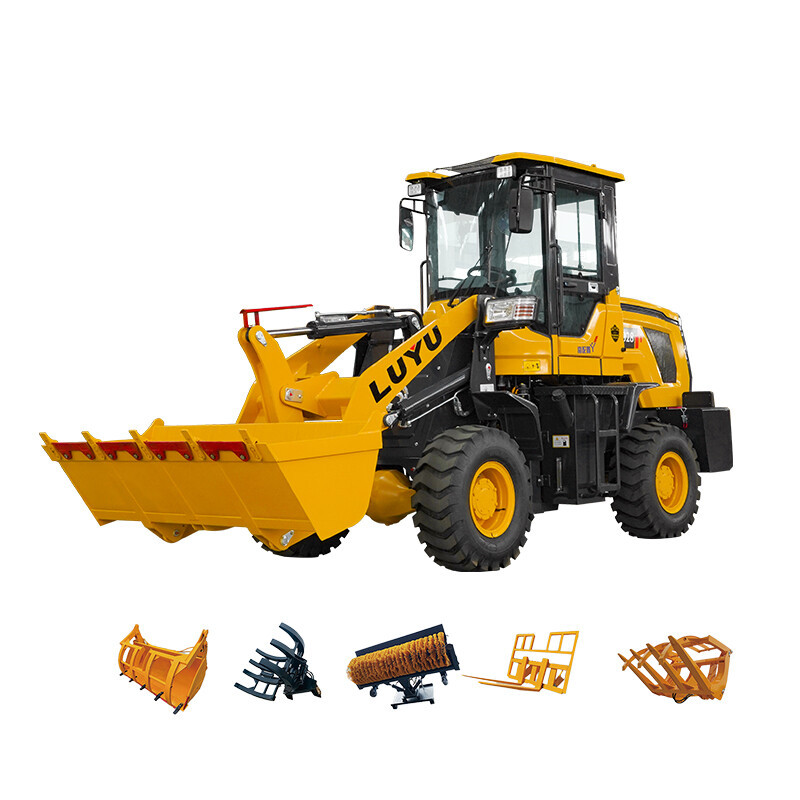

photobank (1).jpg

ADVANTAGES

Thanks to the true hydrostatic drive design, you'll also enjoy the added benefit of smooth, dynamic braking and reduced brake pad wear.

Rear axle oscillation ensures a smooth ride over uneven terrain and keeps all four wheels on the ground so you don't lose traction or excess material in the bucket.
