The assembly process of a loader is a complex and delicate process, covering the assembly and commissioning of several core components and systems. To recognize the structure of the loader, first we need to have a preliminary understanding of the basic structure of the loader.

The working device of the loader is composed of bucket, movable arm, rocker arm and tipping bucket cylinder, movable arm cylinder and so on.

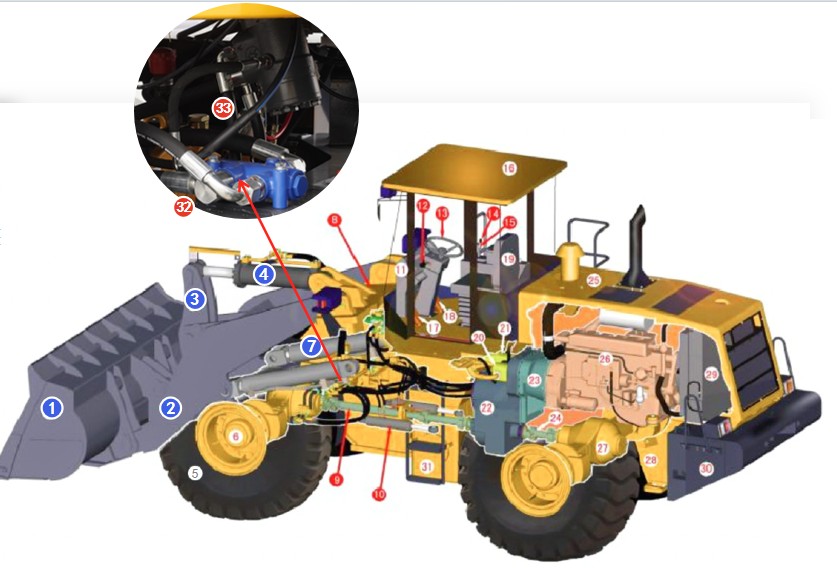

The whole working device is hinged on the frame. The bucket is articulated with the bucket cylinder through the connecting rod and rocker arm for loading and unloading materials. The movable arm is articulated with the frame and the movable arm cylinder to raise and lower the bucket.The following are examples of LUYU's loaders:

1.bucket 2.movable arm (big arm) 3.rocker arm (double link arm or middle arm) 4.dump cylinder 5.tires 6.front axle 7.movable arm cylinder 8.front frame 9.front driveshaft 10.steering cylinder 11.dashboard 12.shift lever 13.steering wheel 14.movable arm cylinder lever 15.dump cylinder longitudinal lever 16.cab 17.brake pedal 18.gas pedal 19.seat 20.work Pump 21.Travel Pump 22.Transmission 23.Torque Converter 24.Rear Drive Shaft 25.Hood 26.Engine 27.Rear Axle 28.Rear Frame 29.Radiator 30.Counterweight 31.Hydraulic Tank 32.Priority Valve 33.Steering Gear

The turning of the bucket and the lifting and lowering of the boom are hydraulically operated.
